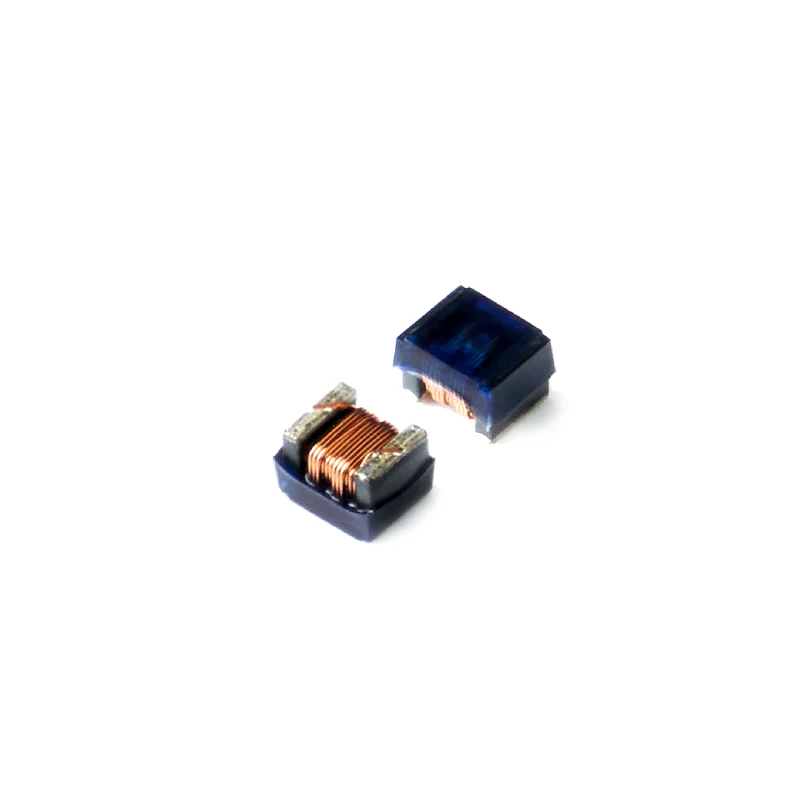

1210 RF Wire Wound Ferrite Chip Inductor
1210 RF Ferrite Wirewound Chip Inductor FWI Series adopts a thin design for notebook computers, PCs, mobile phone backlights and inverters, minimizing product height in 0603 size for highest performance. In addition, it has excellent solderability and resistance to soldering heat. It is also suitable for reflow soldering, high reliability and easy surface mounting.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Application for DC power line.
- Small footprint as well as low profile.
- Ferrite core wire wound construction.
- High Reliability due to wire wound-type construction.
- The products contain no lead and also support lead-free soldering.
Applications
- Car radios and car stereos.
- Microtelevisions, Liquid crystal televisions.
- Television tuners, Radio, and other electronic devices.
- Video cameras, portable VCRs, and mobile telephones.
Shape and Dimensions
| Part Number | Inductance (uH) | Qmin | SRFmin (MHz) | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | |||||
| A Max | B Max | C Max | D Max | E Max | F Max | ||||||
| FWI1210-1R0 | 1.0 | 15 | 90 | 1.2 | 360 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-1R2 | 1.2 | 15 | 85 | 1.3 | 350 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-1R5 | 1.5 | 15 | 55 | 2.0 | 320 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-1R8 | 1.8 | 15 | 50 | 1.5 | 310 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-2R2 | 2.2 | 15 | 40 | 1.6 | 305 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-2R7 | 2.7 | 15 | 40 | 1.0 | 300 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-3R3 | 3.3 | 15 | 28 | 1.2 | 265 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-3R9 | 3.9 | 15 | 22 | 2.0 | 225 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-4R7 | 4.7 | 15 | 22 | 2.1 | 210 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-5R6 | 5.6 | 15 | 22 | 2.2 | 200 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-6R8 | 6.8 | 15 | 22 | 2.2 | 200 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-8R2 | 8.2 | 15 | 20 | 2.6 | 180 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-100 | 10 | 15 | 15 | 3.3 | 160 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-120 | 12 | 15 | 16 | 4.2 | 150 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-150 | 15 | 15 | 10 | 4.8 | 140 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-180 | 18 | 15 | 8.0 | 5.1 | 125 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-200 | 20 | 15 | 5.0 | 5.3 | 110 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-220 | 22 | 15 | 5.0 | 5.6 | 100 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-270 | 27 | 15 | 5.0 | 6.8 | 95 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-330 | 33 | 15 | 4.0 | 7.5 | 85 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-390 | 39 | 15 | 4.0 | 8.2 | 80 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-470 | 47 | 15 | 3.0 | 14.0 | 70 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-560 | 56 | 15 | 2.6 | 15.3 | 65 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-680 | 68 | 12 | 2.5 | 16.4 | 60 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-820 | 82 | 12 | 2.3 | 1.2 | 55 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-101 | 100 | 12 | 2.2 | 1.3 | 45 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-121 | 120 | 12 | 2.0 | 2.0 | 40 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-151 | 150 | 12 | 90 | 1.5 | 360 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-181 | 180 | 12 | 85 | 1.6 | 350 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-221 | 220 | 10 | 55 | 1.0 | 320 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-271 | 270 | 10 | 50 | 1.2 | 310 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-331 | 330 | 10 | 40 | 19.0 | 305 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-391 | 390 | 10 | 40 | 20.5 | 300 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
| FWI1210-471 | 470 | 10 | 28 | 22.5 | 265 | 3.50 | 2.90 | 2.25 | 2.50 | 0.60 | 2.20 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20 days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
FWI Series RF Chip Wire Wound Inductor
Detailed informations including inductance, tolerance, rated current and DCR.
