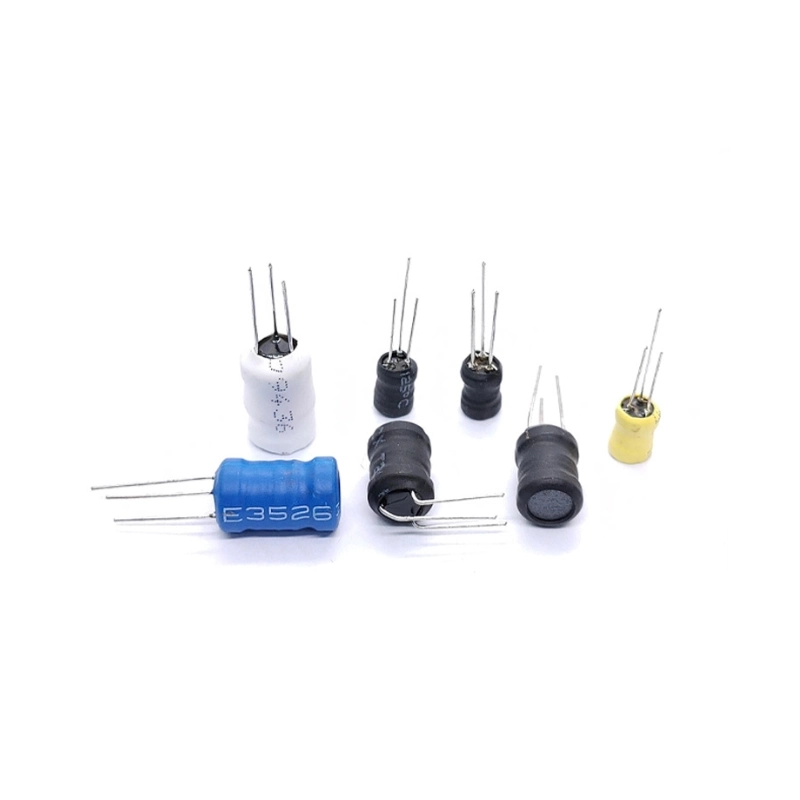

3 Pin Radial Leaded Inductor | 1016 Inductors
A 3-pin inductor belongs to the small auto-transformer and it is usually used for boosting or lowering the voltage. Its size can be customized based on actual demands. 3-pin inductors are suitable for DC-DC converters, buzzers and alarm systems, and laptops. If you want these products and welcome to contact us.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Small-size radial lead type.
- Contains high-frequency ferrite.
- High Q with high rate current.
- ROHS, Halogen and REACH Compliance.
Applications
- Filter power inductors.
- DC-DC converters, chokes.
- Electronic toys and games.
- Audio and video antenna filters.
- LED lighting and automotive parts.
- Telecommunications, TV and VCR equipment.
Shape and Dimensions
| Part Number | Inductance (uH) | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | |||
| ФA(MAX) | B(MAX) | C(MAX) | D | ||||
| RIT1016 | 1uH-300mH | 0.001-400 | 1-9000 | 20.0 | 12.0 | 6.0±0.5 | 0.8±0.1 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.

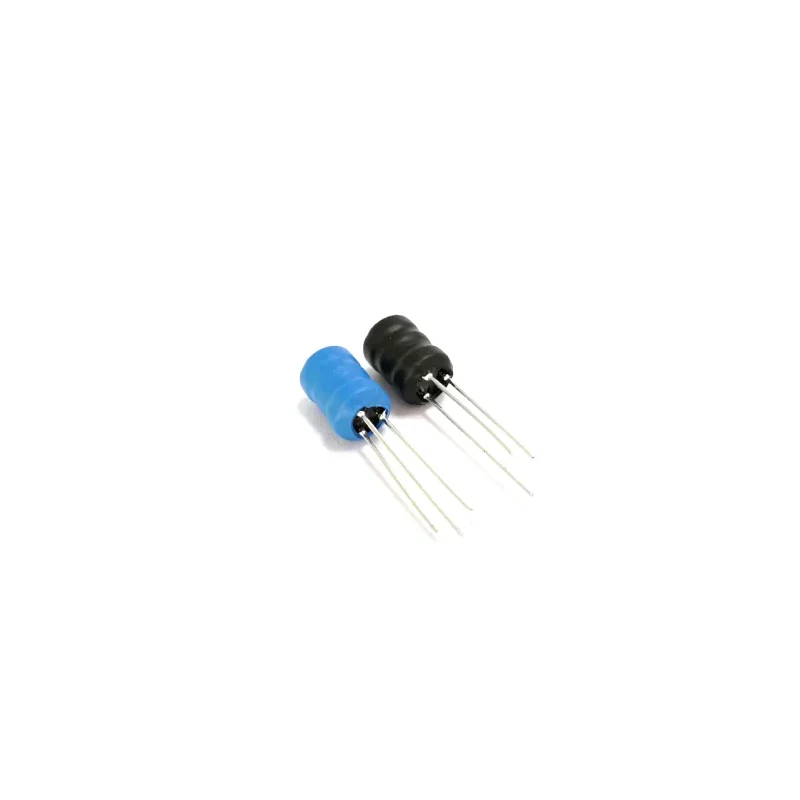

3 Pin Radial Power Inductor
Detailed informations including inductance, tolerance, rated current and DCR.
