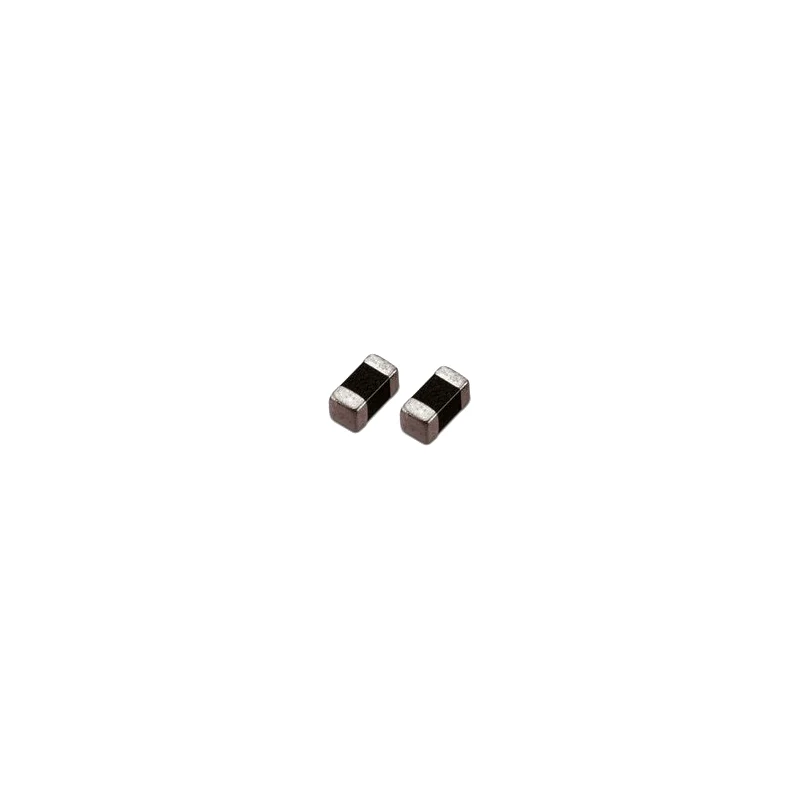

Multilayer Ferrite Chip Inductor_CI1608
SMD multilayer chip inductor is formed by several layers of ceramic (ferrite) material. Multilayer chip inductors feature with low cost and miniature size compared to the wire-wound inductor. Normally, the inductors of the multilayer structure will be chip beads to work as the EMI filter. However, for some applications, because of the limitation of the dimension, the customer also chooses the multilayer product which works as the inductor.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Small size inductor.
- No cross coupling due to magnetic shield.
- Perfect shape for mounting with no directionality.
- Operating temperature range: -55℃～125℃.
- Excellent solderability and high heat resistance for reflow soldering or wave soldering.
Applications
- Widely used in communications, video and audio.
- Equipment, Computers, Remote control, ETC.
Shape and Dimensions
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
CI Series Multilayer Chip Ferrite Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
