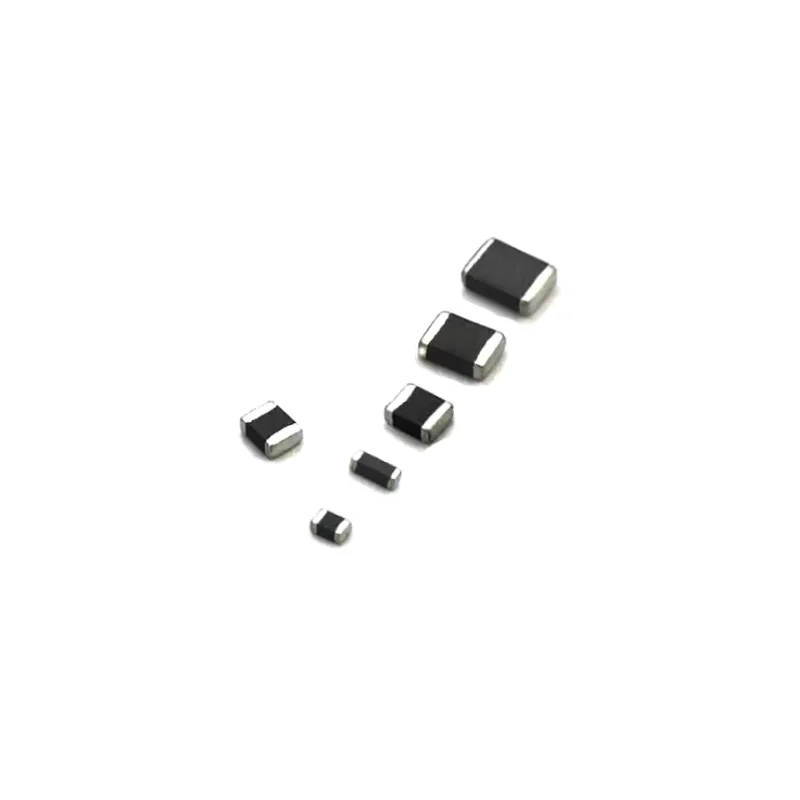

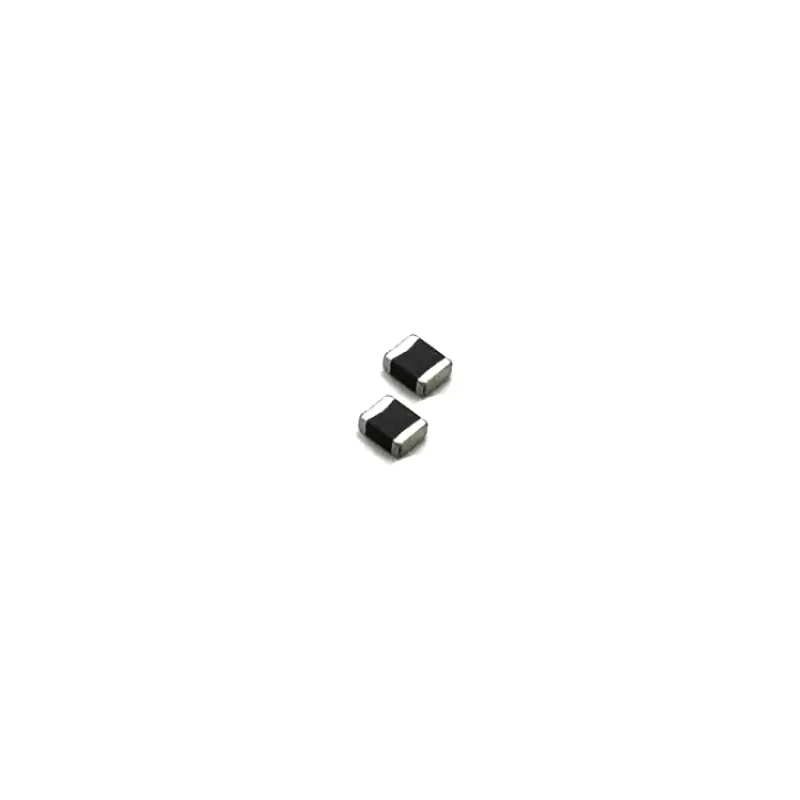

SMD Multilayer Ferrite Beads _ PB3225
Ferrite beads utilize the dissipation of high-frequency currents in ferrite ceramics to build high-frequency noise suppression devices. SMD ferrite beads can convert high-frequency noise into heat. Ferrite beads can also be called blocks, cores, rings, EMI filters, or chokes. EMI multilayer ferrite chip beads are easy to use in various applications for various reasons. Since ferrite materials have high magnetic permeability, they are always used at high frequencies. On the other hand, the inductance value is small and the loss at low frequencies is low.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Cost-effective.
- Miniature dimension.
- Available reflow soldering.
- Excellent High Frequency EMI filter.
- High density installation, High impedance.
- Closed magnetic circuit avoids crosstalk.
Applications
- PC personal computers, laptops.
- Digital devices and LCD TVs.
- Low-power portable devices.
- Noise suppression in power line radiation conduction.
Shape and Dimensions
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
PB Series High Current Multilayer Chip Ferrite Beads
Detailed informations including inductance, tolerance, rated current and DCR.
