Radial Lead Power Inductors _ RI0507

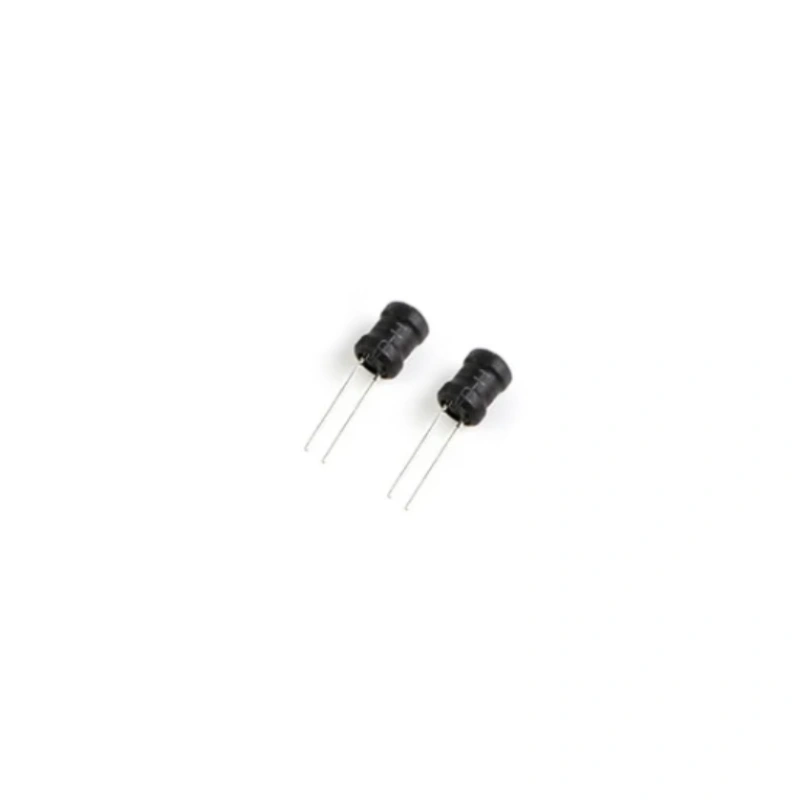

Zhenhua offers a variety of radial inductors, including those with open magnetic circuit designs and winding covers made from plastic or UL tubing. Our through-hole power inductors are characterized by their small size, high Q value, low cost, high self-resonance frequency, large induced current availability, minimal magnetic flux leakage, and large inductance values. With small size and high inductance value.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Ideal as a choke coil for noise filtering.
- Small-size radial lead type.
- With a special base for uniform lead wire.
- Available with or without heart shrunk.
- High Q with high rate current.
Applications
- Buzzers and Alarm systems.
- TVs and Audio equipment and Switching power supplies.
- Notebook computers, DC-DC converters, and air-conditions, etc.
Shape and Dimensions
| Part Number | Inductance (uH) | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||||
| ФA(MAX) | B(MAX) | C(MAX) | D | E | ||||
| RI0507-1R5 | 1.5 | 0.018 | 3500 | 7 | 12.0 | According to customer demand | 0.60±0.1 | 2.5±0.5 |
| RI0507-1R8 | 1.8 | 0.020 | 3100 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-2R2 | 2.2 | 0.026 | 2800 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-2R7 | 2.7 | 0.031 | 2500 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-3R3 | 3.3 | 0.040 | 2300 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-3R9 | 3.9 | 0.045 | 2100 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-4R7 | 4.7 | 0.048 | 1950 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-5R6 | 5.6 | 0.058 | 1700 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-6R8 | 6.8 | 0.066 | 1600 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-8R2 | 8.2 | 0.082 | 1450 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-100 | 10 | 0.090 | 1300 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-120 | 12 | 0.097 | 1150 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-150 | 15 | 0.110 | 1050 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-180 | 18 | 0.130 | 1000 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-220 | 22 | 0.150 | 900 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-270 | 27 | 0.190 | 790 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-330 | 33 | 0.230 | 730 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-390 | 39 | 0.260 | 670 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-470 | 47 | 0.330 | 610 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-560 | 56 | 0.390 | 560 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-680 | 68 | 0.480 | 510 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-820 | 82 | 0.580 | 460 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-101 | 100 | 0.750 | 420 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-121 | 120 | 0.900 | 380 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-151 | 150 | 1.15 | 340 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-181 | 180 | 1.50 | 310 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-221 | 220 | 1.90 | 280 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-271 | 270 | 2.15 | 260 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-331 | 330 | 2.75 | 230 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-391 | 390 | 3.05 | 210 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-471 | 470 | 4.00 | 190 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-561 | 560 | 4.45 | 180 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-681 | 680 | 5.05 | 160 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-821 | 820 | 6.75 | 150 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
| RI0507-102 | 1000 | 7.55 | 130 | 7 | 12.0 | 0.60±0.1 | 2.5±0.5 | |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
RI Series Radial Lead Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
