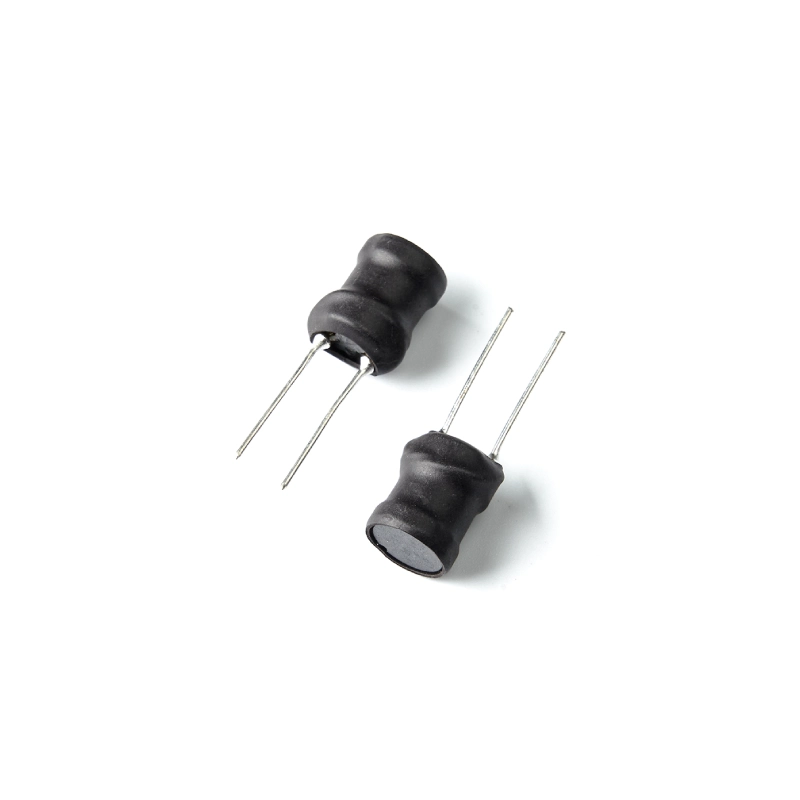

Radial Leaded Power Inductors _ RI0812
Zhenhua offers a variety of radial inductors, including those with open magnetic circuit designs and winding covers made from plastic or UL tubing. Our through-hole power inductors are characterized by their small size, high Q value, low cost, high self-resonance frequency, large induced current availability, minimal magnetic flux leakage, and large inductance values. With small size and high inductance value.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Ideal as a choke coil for noise filtering.
- Small-size radial lead type.
- With a special base for uniform lead wire.
- Available with or without heart shrunk.
- High Q with high rate current.
Applications
- Buzzers and Alarm systems.
- TVs and Audio equipment and Switching power supplies.
- Notebook computers, DC-DC converters, and air-conditions, etc.
Shape and Dimensions
| Part Number | Inductance (uH) | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||||
| ФA(MAX) | B(MAX) | C(MAX) | D | E | ||||
| RI0812-2R2 | 2.2 | 0.021 | 7500 | 9.5 | 17.5 | According to customer demand | 0.80±0.1 | 5.0±0.5 |
| RI0812-3R3 | 3.3 | 0.023 | 7000 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-3R9 | 3.9 | 0.026 | 6500 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-4R7 | 4.7 | 0.028 | 6000 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-5R6 | 5.6 | 0.030 | 5600 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-6R8 | 6.8 | 0.037 | 4800 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-8R2 | 8.2 | 0.039 | 4500 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-100 | 10 | 0.044 | 4000 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-120 | 12 | 0.047 | 3750 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-150 | 15 | 0.055 | 3250 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-180 | 18 | 0.060 | 2950 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-220 | 22 | 0.065 | 2750 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-270 | 27 | 0.076 | 2450 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-330 | 33 | 0.083 | 2200 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-390 | 39 | 0.095 | 2000 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-470 | 47 | 0.120 | 1850 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-560 | 56 | 0.140 | 1700 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-680 | 68 | 0.170 | 1550 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-820 | 82 | 0.190 | 1400 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-101 | 100 | 0.220 | 1250 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-121 | 120 | 0.260 | 1180 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-151 | 150 | 0.350 | 1050 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-181 | 180 | 0.390 | 950 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-221 | 220 | 0.600 | 850 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-271 | 270 | 0.620 | 750 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-331 | 330 | 0.750 | 700 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-391 | 390 | 0.900 | 650 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-471 | 470 | 1.000 | 600 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-561 | 560 | 1.250 | 550 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-681 | 680 | 1.500 | 500 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-821 | 820 | 1.850 | 450 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0812-102 | 1000 | 2.25 | 400 | 9.5 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.

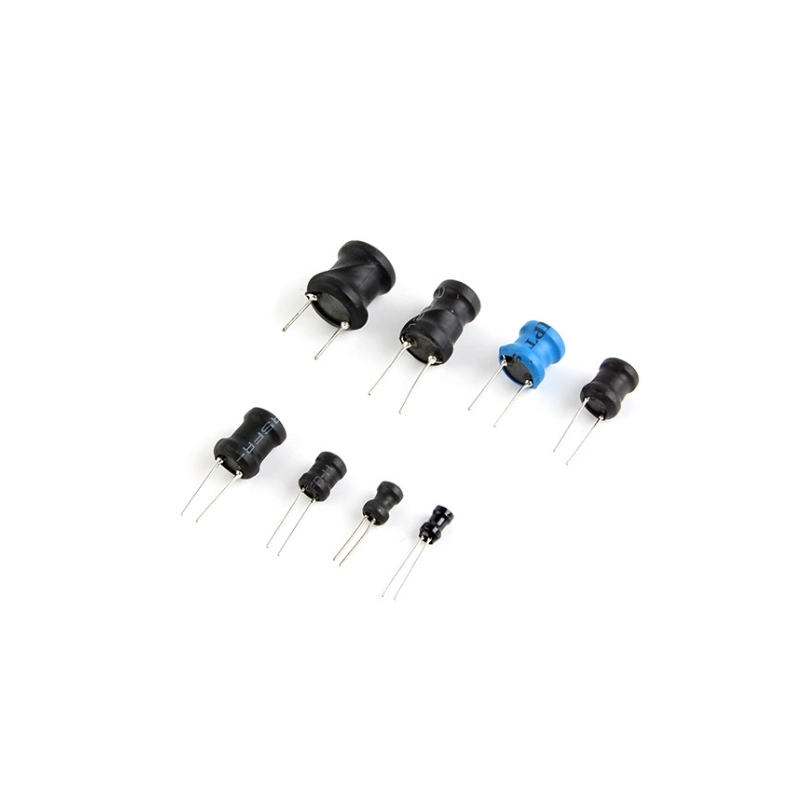

RI Series Radial Lead Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
