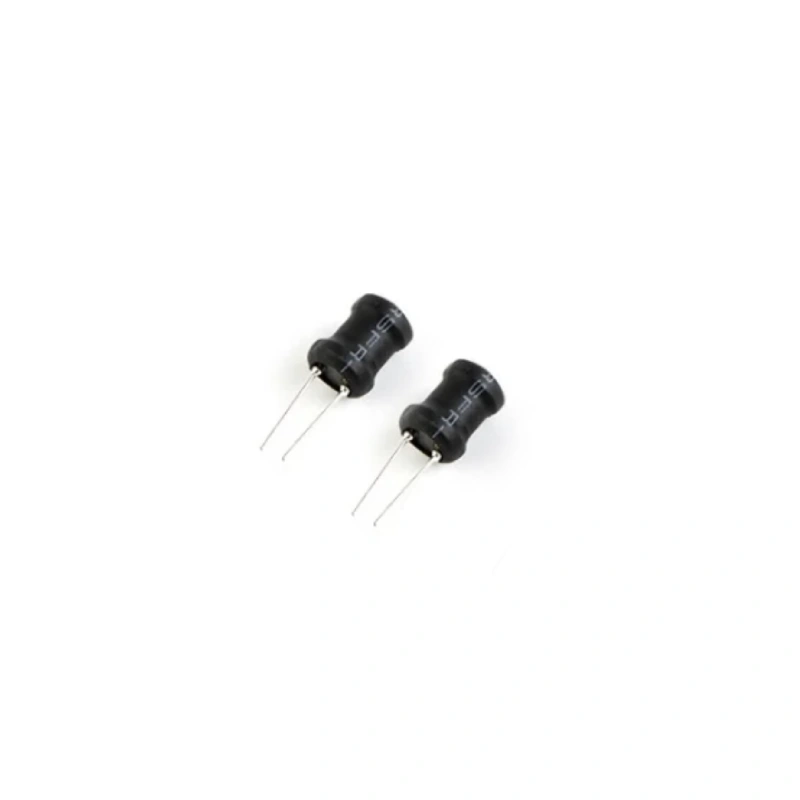

Plugable Radial Power Inductors _ RI0912
Zhenhua offers a variety of radial inductors, including those with open magnetic circuit designs and winding covers made from plastic or UL tubing. Our through-hole power inductors are characterized by their small size, high Q value, low cost, high self-resonance frequency, large induced current availability, minimal magnetic flux leakage, and large inductance values. With small size and high inductance value.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Ideal as a choke coil for noise filtering.
- Small-size radial lead type.
- With a special base for uniform lead wire.
- Available with or without heart shrunk.
- High Q with high rate current.
Applications
- Buzzers and Alarm systems.
- TVs and Audio equipment and Switching power supplies.
- Notebook computers, DC-DC converters, and air-conditions, etc.
Shape and Dimensions
| Part Number | Inductance (uH) | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||||
| ФA(MAX) | B(MAX) | C(MAX) | D | E | ||||
| RI0912-102 | 1000 | 1.20 | 400 | 11.0 | 17.5 | According to customer demand | 0.80±0.1 | 5.0±0.5 |
| RI0912-332 | 3300 | 5.0 | 250 | 11.0 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0912-502 | 5000 | 7.0 | 200 | 11.0 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0912-602 | 6000 | 7.7 | 200 | 11.0 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0912-902 | 9000 | 10.0 | 100 | 11.0 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0912-103 | 10000 | 11.0 | 95 | 11.0 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
| RI0912-113 | 11000 | 12.0 | 90 | 11.0 | 17.5 | 0.80±0.1 | 5.0±0.5 | |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
RI Series Radial Lead Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
