Dip Vertical Power Inductor _ RI1216

Zhenhua offers a variety of radial inductors, including those with open magnetic circuit designs and winding covers made from plastic or UL tubing. Our through-hole power inductors are characterized by their small size, high Q value, low cost, high self-resonance frequency, large induced current availability, minimal magnetic flux leakage, and large inductance values. With small size and high inductance value.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

Description

Applications


  • Ideal as a choke coil for noise filtering.
  • Small-size radial lead type.
  • With a special base for uniform lead wire.
  • Available with or without heart shrunk.
  • High Q with high rate current.

Applications


  • Buzzers and Alarm systems.
  • TVs and Audio equipment and Switching power supplies.
  • Notebook computers, DC-DC converters, and air-conditions, etc.

Shape and Dimensions


Part Number Inductance (uH) DCR Max (Ω) Rated Current Max (mA) Dimensions (mm)
ФA(MAX) B(MAX) C(MAX) D E
RI1216-101 100 0.020 4000 15.0 20.0 According to customer demand 0.80±0.1 7.5±0.5
RI1216-221 220 0.075 3000 15.0 20.0 0.80±0.1 7.5±0.5
RI1216-681 680 0.220 2000 15.0 20.0 0.80±0.1 7.5±0.5

Certification: REACH, ROSH, ISO9001, ISO14001,
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.

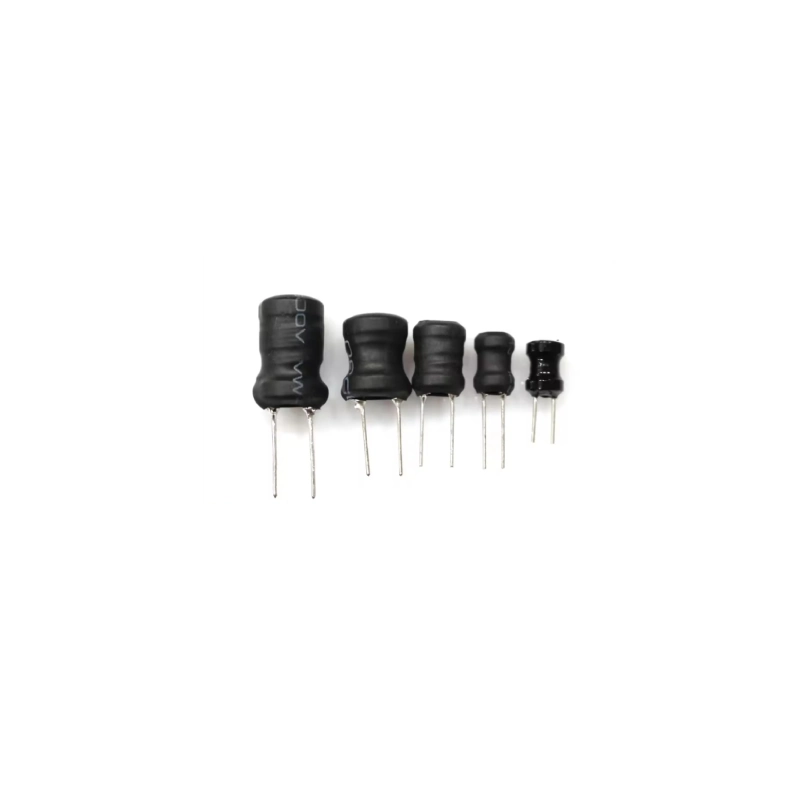

RI Series Radial Lead Inductors

Detailed informations including inductance, tolerance, rated current and DCR.
