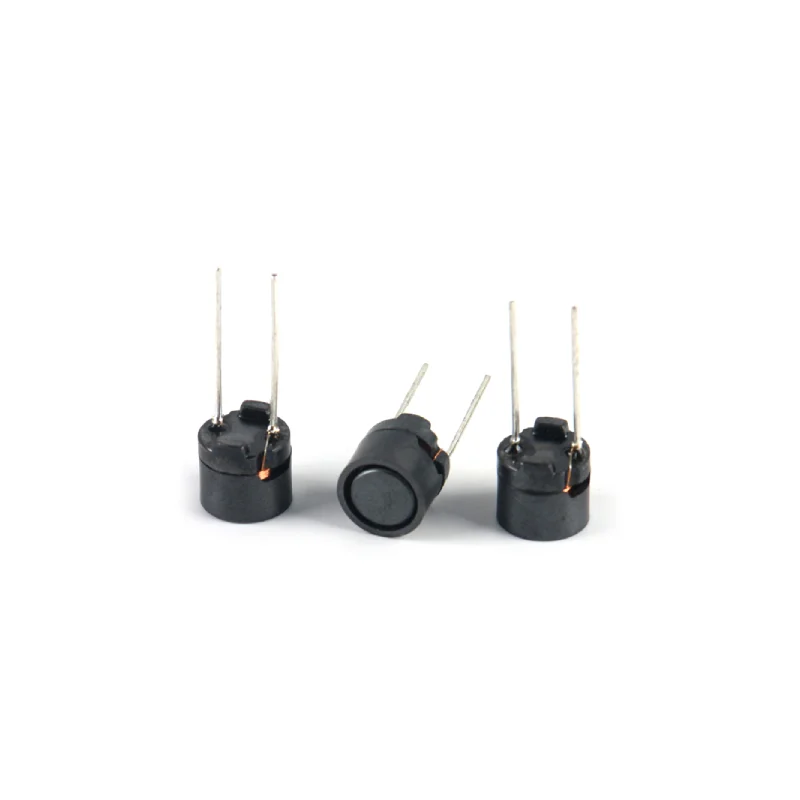

Shielded Radial Choke Inductors _ RID0807
Zhenhua offers a variety of radial inductors such as magnetic shielded circuit design, magnetic toroidal core winding coverage. Through-hole power inductors have the characteristics of small size, high Q value, low cost, high self-resonant frequency, high current availability, low leakage flux and high inductance value.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Applications
- High current capacity
- Rugged reliability and performance.
- To provide mechanical and environmental protection.
- Entrie winding core is encapsulated in heat shriked UL tube or magnetically shielded.
Applications
- TVs and Audio equipment and Switching power supplies.
- Buzzers and Alarm systems, Notebook computers, DC-DC converters and air conditions, etc
Shape and Dimensions
Part Number | Inductance (uH) | DCR Max (Ω) | Rated Current Max (A) | Dimensions (mm) | ||||
ФA(MAX) | B(MAX) | C(MAX) | D | E | ||||
RID0807-1R2 | 1.2 | 0.018 | 4.10 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-1R8 | 1.8 | 0.023 | 3.75 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-2R2 | 2.2 | 0.025 | 3.45 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-2R7 | 2.7 | 0.026 | 3.55 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-3R3 | 3.3 | 0.030 | 3.19 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-4R7 | 4.7 | 0.035 | 2.92 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-6R8 | 6.8 | 0.043 | 2.65 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-8R2 | 8.2 | 0.047 | 2.55 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-100 | 10 | 0.050 | 2.40 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-120 | 12 | 0.055 | 2.25 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-150 | 15 | 0.062 | 1.95 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-180 | 18 | 0.072 | 1.78 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-220 | 22 | 0.080 | 1.60 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-330 | 33 | 0.140 | 1.30 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-390 | 39 | 0.150 | 1.20 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-470 | 47 | 0.170 | 1.10 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-560 | 56 | 0.190 | 0.99 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-680 | 68 | 0.210 | 0.89 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-820 | 82 | 0.270 | 0.81 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-101 | 100 | 0.320 | 0.74 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-121 | 120 | 0.360 | 0.67 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-151 | 150 | 0.510 | 0.60 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-181 | 180 | 0.570 | 0.55 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-221 | 220 | 0.760 | 0.50 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
RID0807-271 | 270 | 0.860 | 0.45 | 8.3 | 7.5 | 5.5 | 0.65±0.1 | 5.0±0.5 |
Certification: REACH, ROSH, ISO9001, ISO14001,
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.

RID Series Shielded Radial Power Inductor
Detailed informations including inductance, tolerance, rated current and DCR.
