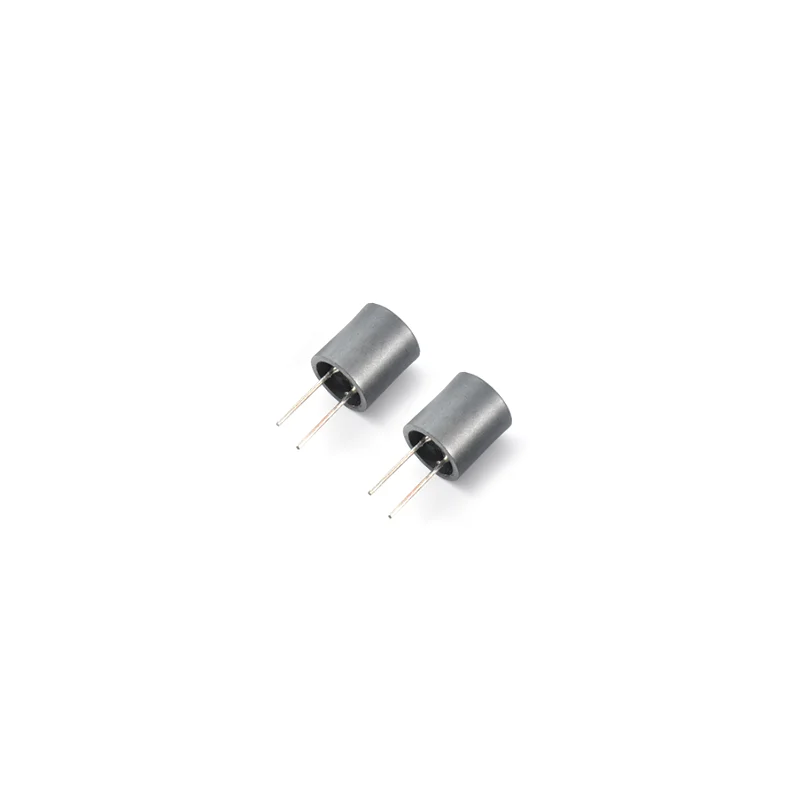

Shielded Radial Lead Inductors _ RIP1012
The RIP series of Through-Hole Shielded Power Inductors provides rugged, economical, and shielded solutions for applications requiring shielded power inductors. Through-hole power Inductors feature small size, high Q value, low cost, high self-resonant frequency, high current availability, low flux leakage, and high inductance value.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Ideal as a choke coil for noise filtering.
- Small-size radial lead type.
- With a special base for uniform lead wire.
- High Q with high rate current.
Applications
- DC/DC Converters.
- Automotive Applications.
- Network Communication Application.
- Ideal as a choke coil for noise filtering.
- Suitable for use in audio processing circuits for low, high and bandpass filtering.
Shape and Dimensions
| Part Number | Inductance (uH) | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||||
| ФA(MAX) | B(MAX) | C(MAX) | D | E | ||||
| RIP1012-100 | 10 | 0.027 | 3300 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-120 | 12 | 0.029 | 3000 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-180 | 18 | 0.037 | 2500 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-220 | 22 | 0.045 | 2250 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-270 | 27 | 0.050 | 2000 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-330 | 33 | 0.068 | 1870 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-390 | 39 | 0.076 | 1680 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-470 | 47 | 0.085 | 1500 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-560 | 56 | 0.094 | 1440 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-680 | 68 | 0.103 | 1280 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-820 | 82 | 0.125 | 1200 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-101 | 100 | 0.170 | 1100 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-121 | 120 | 0.186 | 930 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-151 | 150 | 0.210 | 840 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-181 | 180 | 0.235 | 810 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-221 | 220 | 0.300 | 725 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-471 | 470 | 0.668 | 500 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1012-681 | 680 | 1.080 | 390 | 11.0 | 12.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
RIP Series Shielded Radial Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
