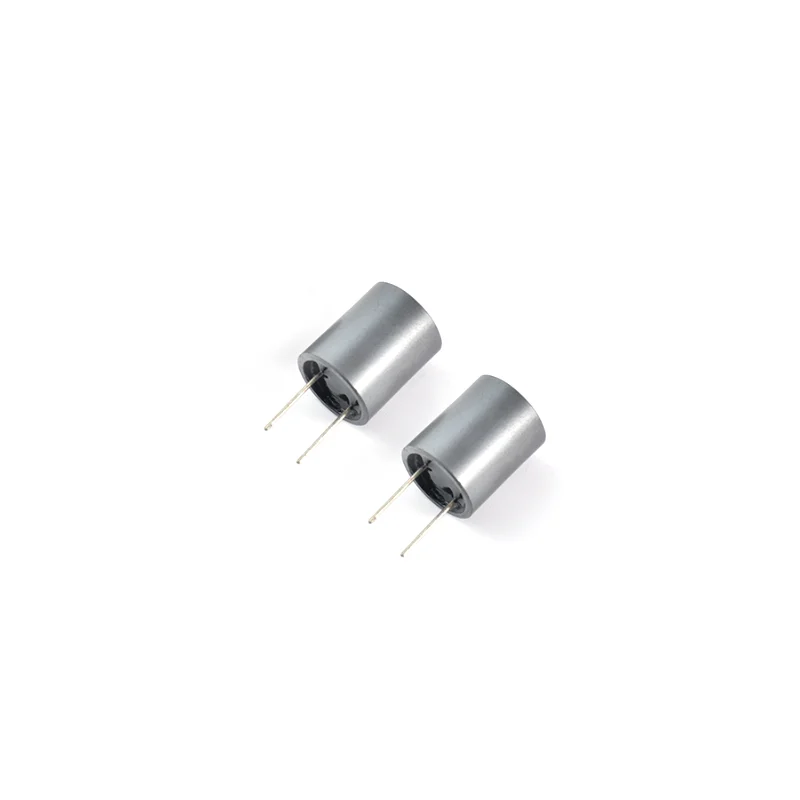

High Current Radial Lead Inductors _ RIP1014
The RIP series of Through-Hole Shielded Power Inductors provides rugged, economical, and shielded solutions for applications requiring shielded power inductors. Through-hole power Inductors feature small size, high Q value, low cost, high self-resonant frequency, high current availability, low flux leakage, and high inductance value.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Ideal as a choke coil for noise filtering.
- Small-size radial lead type.
- With a special base for uniform lead wire.
- High Q with high rate current.
Applications
- TVs and Audio equipment and Switching power supplies.
- Buzzers and Alarm systems, Notebook computers, DC-DC converters and air conditions, etc
Shape and Dimensions
| Part Number | Inductance (uH) | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||||
| ФA(MAX) | B(MAX) | C(MAX) | D | E | ||||
| RIP1014-100 | 10 | 0.029 | 4500 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-120 | 12 | 0.031 | 4000 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-180 | 18 | 0.054 | 3200 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-220 | 22 | 0.060 | 3200 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-270 | 27 | 0.065 | 2700 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-330 | 33 | 0.070 | 2400 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-390 | 39 | 0.078 | 2250 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-470 | 47 | 0.086 | 2100 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-560 | 56 | 0.094 | 1900 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-680 | 68 | 0.102 | 1750 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-820 | 82 | 0.124 | 1650 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-101 | 100 | 0.158 | 1450 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-121 | 120 | 0.220 | 1250 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-151 | 150 | 0.248 | 1180 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-181 | 180 | 0.345 | 1080 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-221 | 220 | 0.440 | 920 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-471 | 470 | 0.902 | 670 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
| RIP1014-681 | 680 | 1.330 | 560 | 11.0 | 14.5 | 5.5 | 0.70±0.1 | 5.0±0.5 |
