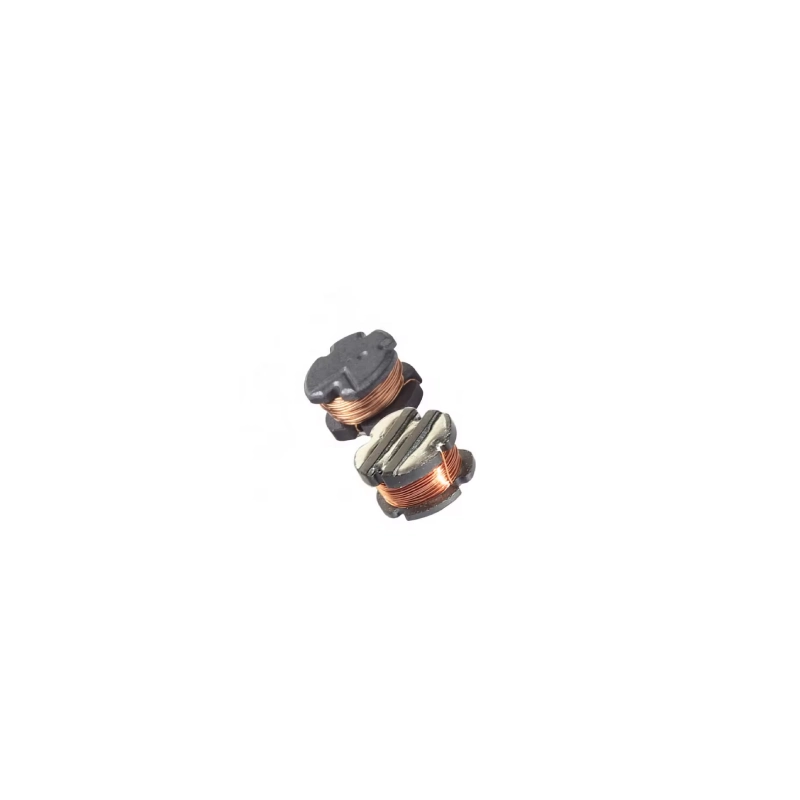

SMD 3 Pins Wire Wound Boost Power Inductors – SMD8050
3-pin chip inductor is a common electronic component, which is widely used in circuit design. It has good inductance performance and small size, and plays an important role in electronic products. Performance characteristics of 3-pin chip inductor Compared with traditional plug-in inductors, 3-pin chip inductor has the following obvious advantages: 1. Small size. 2. Good high-frequency characteristics. 3. Good magnetic shielding effect. 4. High stability.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Unshielded power inductor.
- Hilarious package size and wide inductance range.
- Lead-free materials are used for the plating on the terminals.
- The product uses metal terminals, which realize excellent connection reliability.
Applications
- Buzzer alarm.
- Graphic cards, cordless phone.
- Personal computers, Humidifier.
Shape and Dimensions
| Part Number | Dimensions (mm) | |||||||||||
| ФA1 | ФA2 | B | C | D | E | F | G | H | T | I | M | |
| FWI1812-1R0 | 5.9±0.15 | 5.2±0.15 | 1.5±0.15 | 4.5±0.15 | 1.00±0.10 | 1.20±0.10 | 1.20+0.15 | 1.04±0.10 | 1.04±0.10 | 3.02±0.10 | 1.50+0.10 | 1.50+0.10 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20 days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
SMD Series 3 Pin Wire Wound Boost Inductor
Detailed informations including inductance, tolerance, rated current and DCR.
