SMD Semi-Shielded Power Inductor -NR252012

SMD Magnetic Power Inductors – NR8040

NR Series SMD Inductors offer a unique balance between fully shielded and unshielded inductors, making them ideal for applications that require moderate EMI control without the added weight or cost of a fully enclosed design. Using SMD semi-shielded inductors, engineers can effectively reduce EMI while optimizing weight, board space, and overall cost.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

Request A Quote
Categories ,

Description

Features

  • ROHS and REACH compliant.
  • Metal alloy wire wound power inductor.
  • Constructure Low RDC and high rate current.
  • Magnetic-resin shielded structure, ultra low buzz noise, Shielded and miniature package design.
  • Its rate current could be increased up to 30% compared to ferrite base power inductor.

Applications

  • LED lighting.
  • DSC, Camcorders.
  • DC/DC converters.
  • Smartphones, tablets, and wearable devices.

Shape and Dimensions

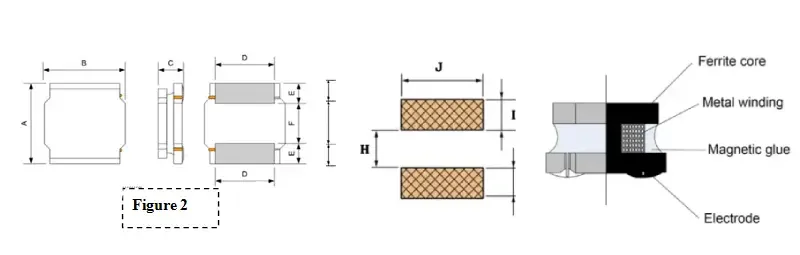

NR Series SMD Inductors Shape and Dimensions

Part Number Inductance (µH) DCR Max (mΩ) Saturation Current Max (mA) Rated Current Max (mA) Mounting Dimensions (mm)
A B C D E F
NR8040-R82 0.82 0.010 13800 6300 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-1R0 1.0 0.010 9850 6300 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-1R2 1.2 0.013 10000 5650 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-1R5 1.5 0.013 8150 5650 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-2R0 2.0 0.016 9250 5150 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-2R2 2.2 0.016 7100 5150 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-3R0 3.0 0.018 6100 4700 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-3R3 3.3 0.022 6500 4400 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-3R6 3.6 0.022 7520 4350 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-3R9 3.9 0.022 5750 4350 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-4R7 4.7 0.025 5900 4100 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-5R1 5.1 0.025 4700 4050 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-5R6 5.6 0.027 6000 3850 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-6R2 6.2 0.027 4450 3850 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-6R8 6.8 0.031 4550 3600 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-8R2 8.2 0.034 4200 3450 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-100 10 0.038 3600 3300 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-120 12 0.053 3500 2800 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-150 15 0.061 2950 2600 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-180 18 0.069 3700 2400 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-220 22 0.090 2400 2100 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-270 27 0.101 2150 2000 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-330 33 0.126 2050 1800 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-360 36 0.133 2000 1750 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-390 39 0.139 1950 1700 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-430 43 0.147 1900 1650 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-470 47 0.177 1750 1550 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-510 51 0.185 1700 1500 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-560 56 0.192 1550 1450 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-620 62 0.237 1500 1300 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-680 68 0.255 1450 1250 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-750 75 0.274 1350 1200 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-820 82 0.293 1300 1150 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-910 91 0.354 1200 1050 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-101 100 0.377 1150 1000 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-121 120 0.434 1050 950 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-151 150 0.533 1100 850 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-181 180 0.676 950 830 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-221 220 0.779 850 800 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-331 330 1.156 680 640 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-471 470 1.625 600 500 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-681 680 2.665 500 450 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-102 1000 3.640 400 350 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2
NR8040-152 1500 6.500 320 260 SM 8.0±0.2 8.0±0.2 4.2Max 6.3±0.2 2.0±0.2 4.0±0.2

Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample services: usually take 3-5 working days after customs need them.

NR Series SMD Power Inductors

Detailed information including inductance, tolerance, rated current and DCR.
