Common Mode Toroidal Core Inductor _ THH Series

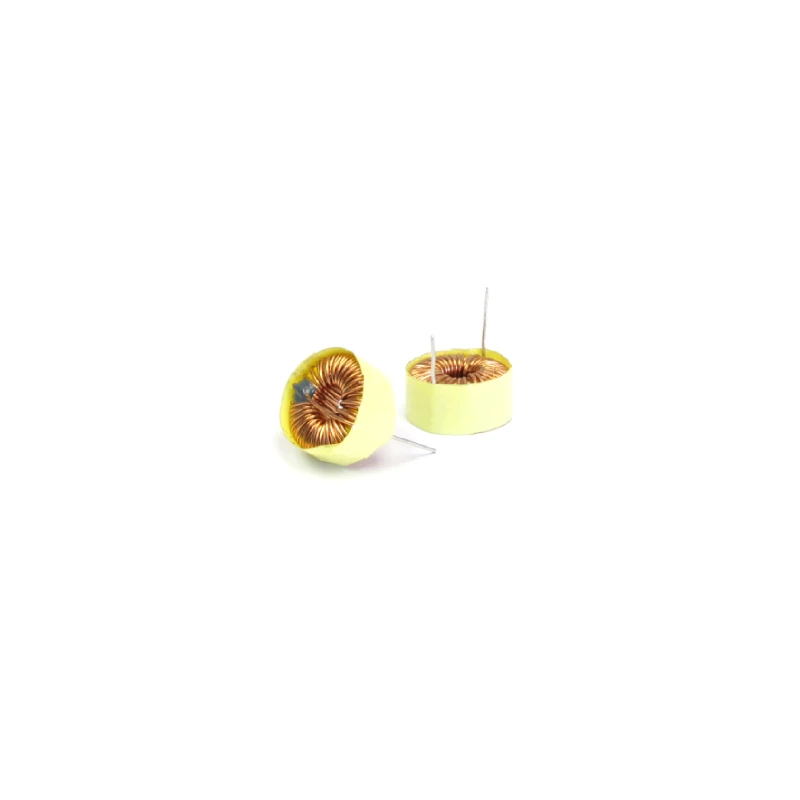

A toroidal inductor, widely used in electronic circuits, is an insulated coil wound around a toroidal shape and made of different materials such as iron powder, ferrite or other materials. Toroidal inductors are mainly used in situations where high inductance is required. They have a higher inductance per turn and can carry more current than solenoids with a core of similar material and size.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- High saturation current.
- It offers much lower losses and high energy storage capability.
- Toroidal distributed gap makes less leakage of magnetic flux.
- Useful in a wide variety of power conversion and line filter applications.
Applications
- Automotive
- Output chokes.
- Switching mode power supplies.
- SCR and Triac Controls.
- EMI filters, loading coils, and Q filters.
Shape and Dimensions
Part Number | Impedance (uH) | DCR Max (Ω) | lrms Max (mA) | lsat Max (mA) | Dimensions (mm) | |
ФA (Max) | ФB (MAX) | |||||
THH3026-4R7 | 4.7 | 0.035 | 700 | 3000 | 10 | 6 |
THH3026-150 | 15 | 0.080 | 20 | 100 | 10 | 6 |
THH5026-200 | 20 | 0.040 | 700 | 3000 | 20 | 10 |
THH5026-101 | 100 | 0.200 | 500 | 2000 | 20 | 10 |
THH5026-221 | 220 | 0.450 | 250 | 1000 | 20 | 10 |
THH6026-1R3 | 1.3 | 0.005 | 800 | 4000 | 21 | 12 |
THH6026-220 | 22 | 0.045 | 900 | 5000 | 21 | 12 |
THH6026-181 | 180 | 0.250 | 500 | 2000 | 21 | 12 |
THH26826A-1R5 | 1.5 | 0.005 | 1000 | 6000 | 22 | 10 |
THH28026-1R2 | 1.2 | 0.005 | 1000 | 6000 | 24 | 10 |
THH10608-300 | 30 | 0.045 | 2000 | 10000 | 31 | 16 |
Certification: REACH, ROSH, ISO9001, ISO14001,
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample services: usually take 3-5 working days after customs need them.

THH Series Toroidal Choke Coil Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
