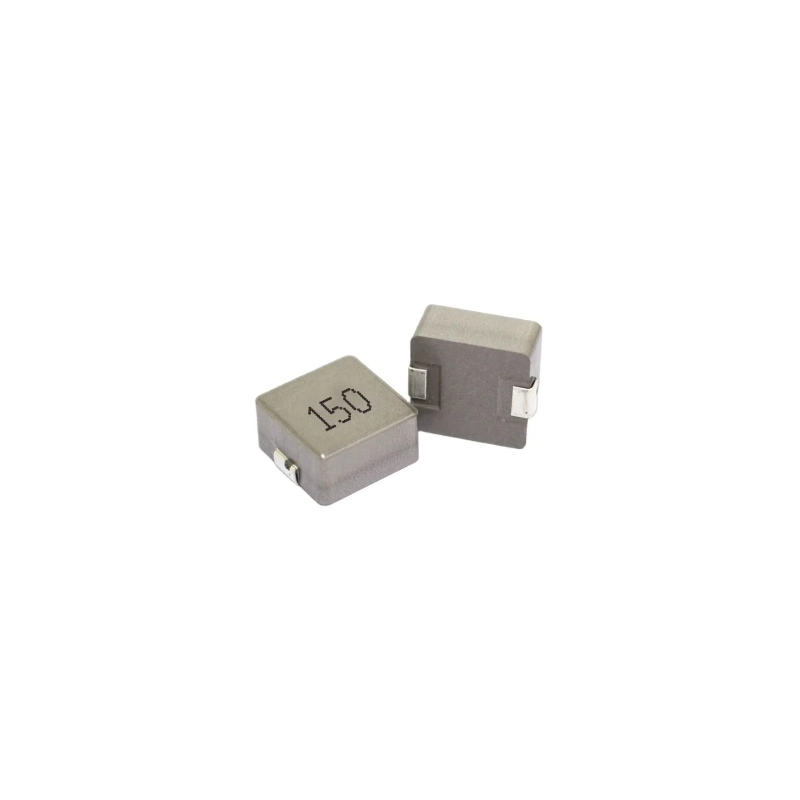

Ultra High Power Automotive Molded Inductors – SHC1205
SHC Series SMD molded power inductor, also called molding high current power inductor, utilizes molding technology to cover the coil and has high magnetic shielding effectiveness with low magnetic flux leakage, no acoustic noise and soft saturation current. The molded inductors are featured with a simple structure that can be designed to be more compact and lightweight than other types of power inductors, which can be beneficial in certain applications where space is limited, or weight is a concern.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Molded magnetic shielded.
- ROHS and REACH compliant.
- Low RDC and ultra-large current.
- High-rate current and ultra-low buzz noise.
- High performance (Isat) is realized by the metal dust core.
Applications
- Switches and servers.
- Base stations and DC/DC converters.
- PDA, notebook, desktop, and server application power supplies.
Shape and Dimensions
| Part Number | Inductance (µH) | DCR Max (mΩ) | lrms Current (A) | lsat Current (A) | Mounting | Dimensions (mm) | ||||
| A (Max) | B (Max) | C (Max) | D | E (REF) | ||||||
| SHC1205-R33 | 0.33 | 0.0010 | 32 | 60 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-R36 | 0.36 | 0.0012 | 28 | 50 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-R47 | 0.47 | 0.0013 | 25 | 48 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-R56 | 0.56 | 0.0015 | 23 | 46 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-R68 | 0.68 | 0.002 | 20 | 40 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-R82 | 0.82 | 0.0025 | 19 | 39 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-1R0 | 1.0 | 0.0035 | 18 | 35 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-1R5 | 1.5 | 0.0041 | 17.5 | 33 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-1R8 | 1.8 | 0.0043 | 17 | 30 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-2R2 | 2.2 | 0.0045 | 16 | 25 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-3R3 | 3.3 | 0.013 | 15 | 23 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-4R7 | 4.7 | 0.015 | 12 | 21 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-5R6 | 5.6 | 0.017 | 11.5 | 20 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-6R8 | 6.8 | 0.019 | 11 | 18 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-8R2 | 8.2 | 0.0225 | 10 | 17 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-100 | 10 | 0.030 | 6 | 13 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-150 | 15 | 0.060 | 5 | 12 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-220 | 22 | 0.075 | 4 | 8 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-330 | 33 | 0.082 | 3 | 6 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-470 | 47 | 0.090 | 2.5 | 3.5 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-560 | 56 | 0.180 | 2 | 3 2 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
| SHC1205-680 | 68 | 0.210 | 1.5 | 3.0 | SM | 14.5 | 13.5 | 5.0 | 3.5±0.3 | 2.5 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
SHC Series SMD Molded Power Inductors
Detailed information including inductance, tolerance, rated current and DCR.
